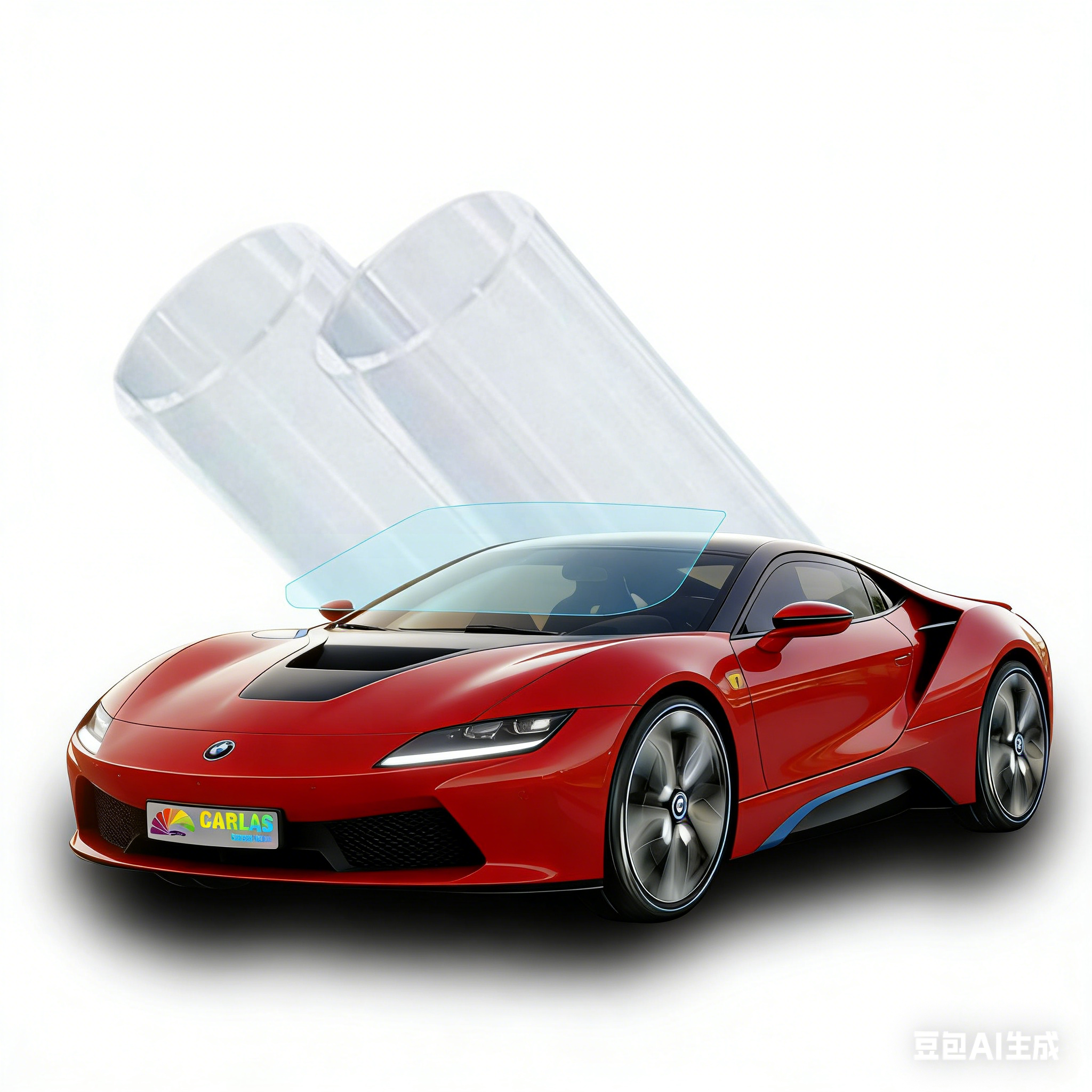

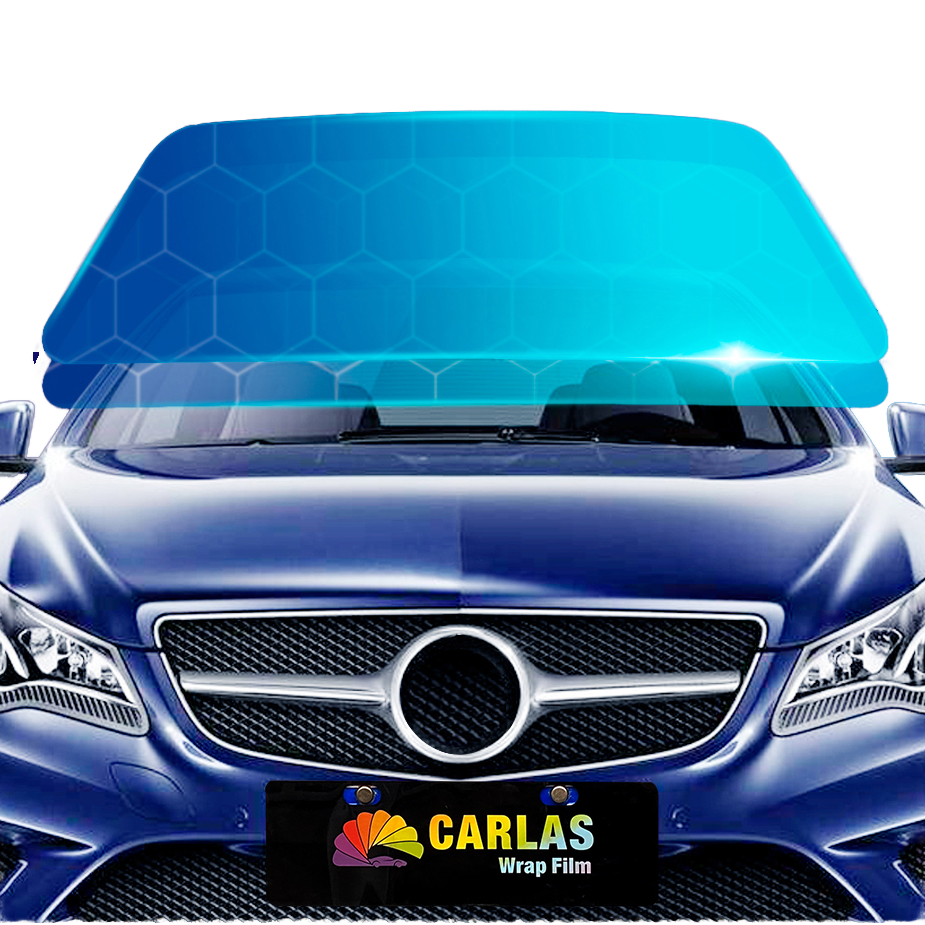

CARLAS XP2100 Automotive TPU Glass Armor Exterior Windshield Film High Transparency Anti-Scratch

CARLAS XP2100 TPU Glass Armor – Factory Direct Supply for Automotive Windshield Protection | OEM/ODM Supported

As a leading manufacturer of automotive protective films, Zhaoqing Carlas Industrial Co., Ltd. offers factory direct supply of the XP2100 TPU Glass Armor—a high-performance external front windshield protective film designed for global distributors, tint shops and brand partners. With mature production technology and strict quality control, our XP2100 film features superior mechanical performance, excellent weather resistance and stable product consistency, and supports flexible bulk ordering and full OEM/ODM customization services to meet your market expansion needs.

The XP2100 is made of premium TPU surface material with a total finished film thickness of 144um (0.144±0.015mm), equipped with an 8um self-healing layer and 12um acrylic adhesive system. Its core performance indicators are fully tested and qualified: 93% VLT for high clarity, ≥68.9N penetrating resistance, 32MPa tensile strength, 269% elongation at break, and 90% UV blocking rate. The film has passed a series of rigorous physical and environmental tests, including 2000H UV weathering test (slight yellowing, normal repair performance), 720h damp heat resistance test (85℃/85%RH) and 66℃ high temperature test, with no yellowing, delamination, degumming or glue overflow, and the self-healing function remains effective after all tests. It also features good chemical resistance—no abnormality after xylene immersion and alcohol wiping, and only slight traces after marker pen smearing, meeting the high standards of automotive after-sales market.

We support flexible MOQ for bulk orders, and provide comprehensive OEM/ODM customization services including private label printing, custom packaging design and specification adjustment. Our production line ensures stable output and on-time delivery, and all products are 100% inspected before shipment to guarantee consistent quality. With the product’s wide temperature adaptability (-40℃~80℃), it is suitable for sales in global markets with different climate conditions.

Backed by decades of manufacturing experience in automotive films, CARLAS is committed to providing high-quality products and professional one-stop service for our B2B partners. Welcome to contact us for sample application, bulk quotation and OEM/ODM cooperation negotiation!

1. Ultra-High Transparency & Traffic Compliance

93% high visible light transmittance (VLT) ensures crystal-clear driving vision with no visual obstruction, fully complying with global automotive traffic safety regulations for front windshield films.

2. Superior Impact & Tear Resistance

With penetrating resistance ≥68.9N and tear strength ≥90N/mm, it effectively defends against high-speed flying stones, gravel and road debris impacts, preventing glass cracking and breakage—far exceeding ordinary protective film performance.

3. Reliable Thermal Self-Healing Performance

Equipped with a dedicated 0.008mm self-healing layer; minor scratches from wiper wear or external friction can be fully repaired after 1 minute in 50-70℃ hot water, maintaining a smooth and clean film surface for long-term use.

4. Excellent UV Protection & Interior Preservation

Blocks 90% of harmful UVA/UVB rays, effectively preventing car interior fading/cracking caused by long-term sun exposure and protecting passengers from UV damage during driving.

5. Outstanding All-Round Weather Resistance

Passed 2000H UV weathering test, 720h damp heat test (85℃/85%RH) and 48h high temperature test (66℃); no yellowing, delamination, degumming or glue overflow occurs, with normal self-healing performance retained—adapts to harsh outdoor environments for long-term use.

6. Stable High-Adhesion Acrylic Adhesive System

Acrylic oil adhesive with 180° peel adhesive ≥600gf/25mm and holding power ≥20hr/kg*20mm² ensures firm bonding without warping; low release force (4.5gf/25mm) enables professional bubble-free construction, and no residual glue when removed.

7. Wide Temperature Adaptability for Global Markets

Stable performance in an extreme temperature range of -40℃ to 80℃, suitable for sales and use in regions with frigid, hot, dry or humid climates worldwide—no performance attenuation due to temperature changes.

8. Strong Chemical & Stain Resistance

Resists organic solvents (no abnormality after 10s xylene immersion + alcohol wiping) and daily stains (only slight traces after 10s marker pen smearing + alcohol wiping); easy to clean and maintain, keeping the film surface tidy.

9. High-Quality TPU Material & Optimized Structure

Made of premium TPU surface material (0.130mm) with a multi-layer composite structure (total thickness 0.144mm); the film is thick and tough with good flexibility, fitting the curved surface of automotive windshields perfectly without cracking.

10. Strict Full-Process Quality Control

All products undergo comprehensive physical property testing, visual inspection and environmental resistance testing before shipment; 100% qualified rate, consistent product performance in bulk production, and reliable quality for long-term cooperation.
